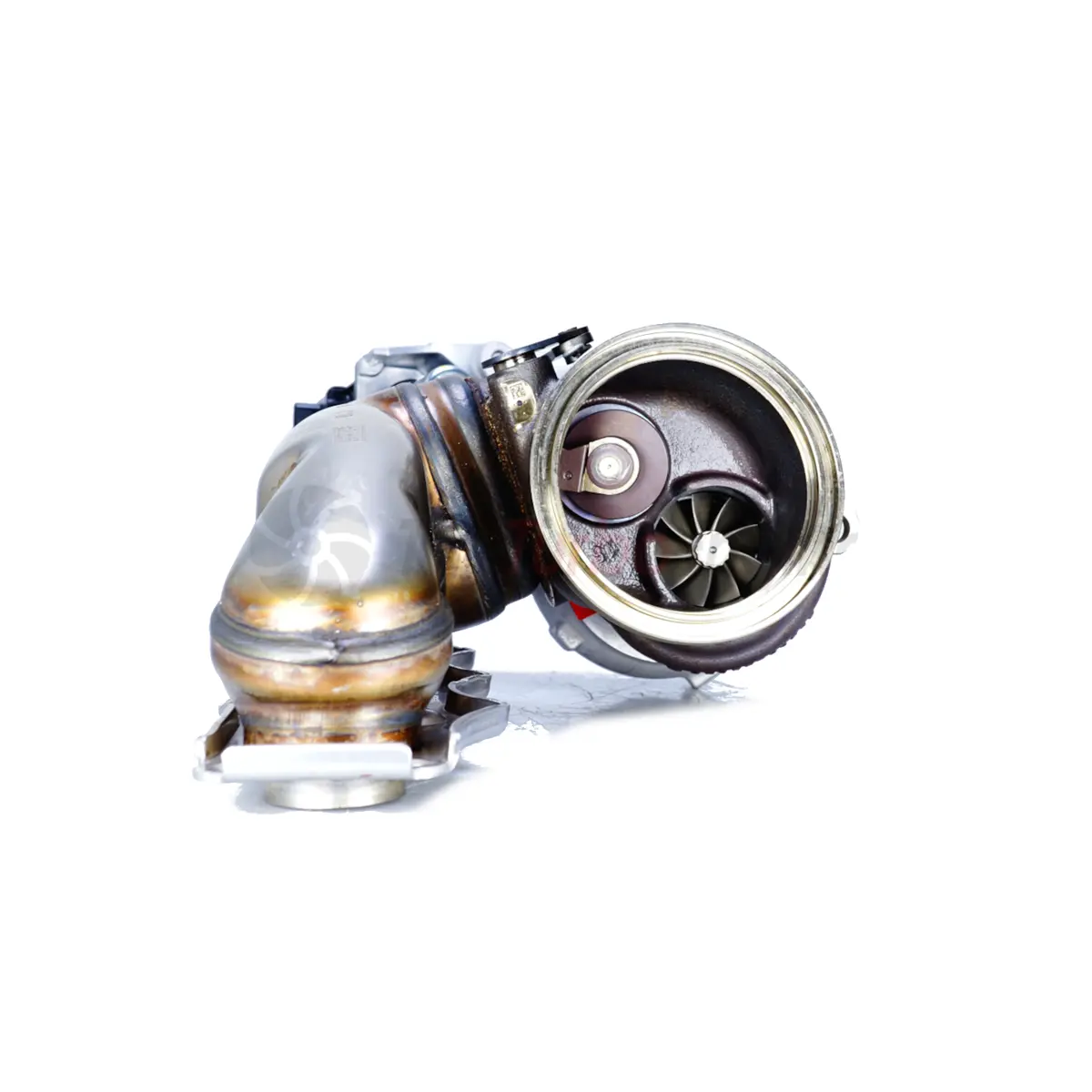

TTE410 Turbocharger – High-Performance Upgrade for BMW N20 2.0L Turbocharged I4

Description

Introducing the TTE410 Upgrade hybrid turbocharger for the four-cylinder petrol N20 engine from BMW. To construct a TTE410 N20 we change the original compressor and employ a far larger and more efficient billet 6+6 wheel and mill the compressor cover to the optimum gap to match the new compressor profile. Notice we CNC mill the cover to have a smooth transition to the intake inlet, no big step to hinder airflow as you see on the competition’s offerings.

We replace the original exhaust turbine and CNC mill the turbine housing to install a larger 9 blade turbine for greater gas flow and lower backpressure. Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

If you chose to upgrade your existing turbo, our sales staff will reach out to you after placing the order to arrange shipping and discuss timeframe as well as other details. Please note that miscellaneous charges for logistics and VAT may accrue.

Features:

• Original Genuine turbocharger as the base part
• Highly Efficient 6+ 6 Next Gen Billet Compressor 50.5mm Inlet
• High-Flow Compressor Inlet CNC machining
• High-Flow 9 Blade Turbine 46 mm Outlet
• 360 Thurst Bearing
• Genuine electronic actuator or pneumatic is available
• Genuine diverter valve
• Dynamically Balanced & Supplied with test result documents
• Fitment As Original. Plug & Play with bigger inlet(not supplied)
• 400PS Capable
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Software recalibration is required
• Proven TheTurboEngineers Quality
• Made in Germany

What’s Included:

• TTE Turbocharger TTE410
