Description
Working volatges:
4.8-8.4V
Speed:
- 0.125sec/60° @ 4.8V
- 0.105sec/60° @ 6.0V
- 0.092sec/60° @ 7.4V
- 0.082sec/60° @ 8.4V
Stall Torque:
- 36 kg-cm (500 oz-in) @ 4.8V
- 43 kg-cm (597 oz-in) @ 6.0V
- 48 kg-cm (667 oz-in) @ 7.4V
- 55 kg-cm (750 oz-in) @ 8.4V
Gears: Hardened Stainless Steel
Motor: 4-Poles Brushless Motor
Size: 40*20*38mm (1.57 x 0.78 x 1.49 in)
Weight: 85g
Connector Wire: TYU 300mm / 22AWG

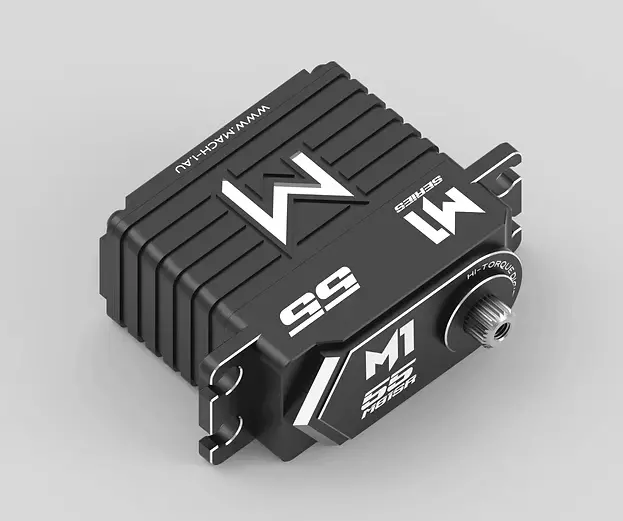

After more than 6 months of development and testing we are excited to launch our latest servo, the M1 SR SERIES 55KG digital programmable servo.
Succesfully proven across the globe in 1:8 scale electric and nitro buggy and truggy at some of the largest events in the world as:
-
2024 Dirt Nitro Challenege.
-
2024 Psycho Nitro Blast.
-
2024 Silverstate.
-
2024 RCRA Queensland State Titles.
-
2024 Philippines Masters.
-
And many many more regional events across Australia and the USA!
We wanted to make something special, we updated the design and the materials used including:
-
New hardened stainless steel gears matched to a new hardened retaining pin with reinforced housing in the servo case.
-
Bearings, the new design now utilises 4 dustproof ball bearings,
-
A new high torque 4-pole brushless motor, increasing the torque and speed. We have updated the case and motor housing now encorporating all alloy 3 piece construction elimates flex and any side sway spline movement.
-
An updated logic board, being Mach-1 its programmable!
Of course we kept our precise magnetic encoder which allows the servo run in very humid conditions.
Feature
-
Programmable high voltage Digital Servo
-
Beautifully designed CNC machined alloy case
-
Hardened Stainless Steel Gears with reinforced pin.
-
New Ultra Strong 55KG 4-Pole Brushless Motor
-
Four Dust Resistant Bearings
-
Reinforced Pin Shaft and Structure
-
2S LiPo High Voltage Capable
-
25T Output Spline
-
IP67 RATED Waterproof
Designed to last, engineered to perform – race proven.
