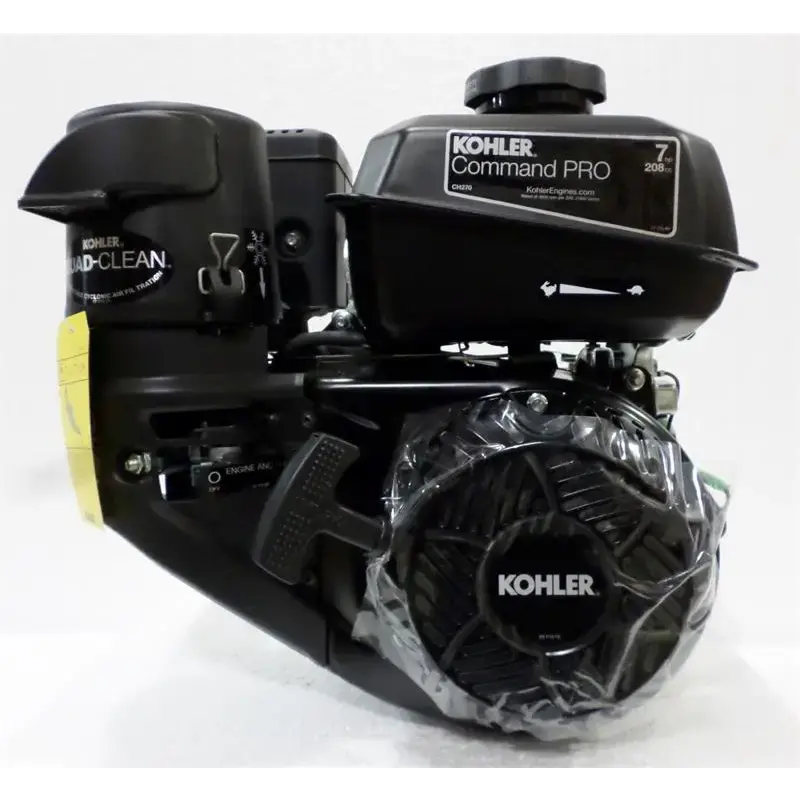

Kohler PA-CH270-3152 7 HP Command Tiller Engine Replacement

Description

Kohler Engine 7 HP Command Pro, CH270-3152, 208cc, 3/4″ Crankshaft

 Good replacement for Troy Bilt Tiller Pony and Horse models,  No Tax.

Features

• Overhead Valve Design, Dual Ball Bearings, Cast-Iron Cylinder Bore, Electronic Ignition, Quad-Clean 4-Stage Heavy-Duty Cyclonic Air Cleaner-

  • No Tools Required All Season Air Cleaner
  • Interference Free PTO Face
  • High-inertia Flywheel
  • Stellite Faced Exhaust Valve
  • Water Trap to Separate Moisture in Fuel
  • Dual Oil Fills and Drains
  • Steel-forged crankshaft
  • Automatic compression release
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Mechanical Governor
  • Carburetor Bowl Drain
  • Large metal fuel tank and chrome plated cap
  • Warm air intake system for cold weather operation
  • Indexable, Eazy Pull Retractable Starter
  • Oversized Muffler with Heat Shield
  • Easy Access Throttle, Choke and Shutoff

  Crankshaft-3/4″ 0.75″ (19.05 mm) Diameter x 2.42″ (61.47 mm) PTO Length, 3/16″ (4.7 mm) Keyway,
  Drilled and Tapped   0.67 in (17.01 mm) Deep, 5/16-24 UNF,
  PTO Face-3.625″ (92.08 mm) Diameter, (4 Holes) 5/16-24 UNF-2B Thread 0.55 in (13.97 mm) Deep,

SPECS

4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block

Model Command PRO CH270HP (kW) ¹ 7(5.2)Displacement (cc) 12.7 (208)Bore in (mm) 2.8 (70)Stroke in (mm) 2.1 (54)Gross Torque ft lbs (Nm) ¹ 10.5 (14.2)Compression Ratio 8.5:1Dry Weight lbs (kg) 38.7 (17.5)Oil Capacity US qts (L) 0.63 (0.6)Lubrication SplashDimensions LxWxH (in)* 12.7 x 15.2 x 14.2Backpressure Limit ² 30Certified Power HP (kW) ³ 6.6 (4.9)Certified RPM 4000Engine Type Commercial

• Model: PACH270-3152
• UPC: 885612358271
• Shipping Weight: 48lbs
• Manufactured by: Kohler
